Connecting FLEX to Commercial Amplifiers

Connecting FLEX to Commercial Amplifiers

FLEX Device

Device has Stereo line level output.

Included with the Device is a single 3.5 mm (1/8) headphone jack-stereo Line out to dual RCA.

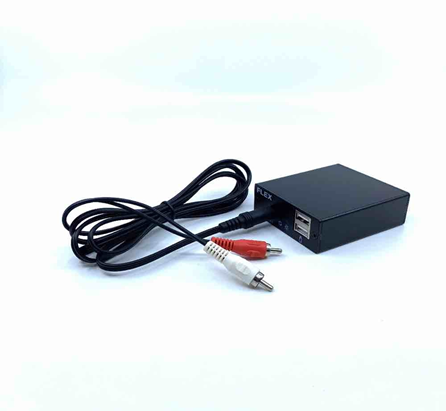

Flex Unit with Standard Stereo Cable attached

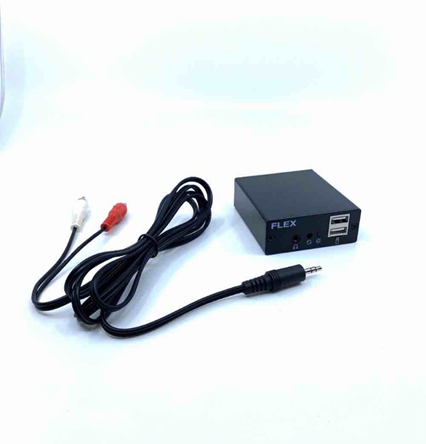

Flex Device with Standard supplied Stereo Cable


Setup below is when you have only 1 music input on an amp.

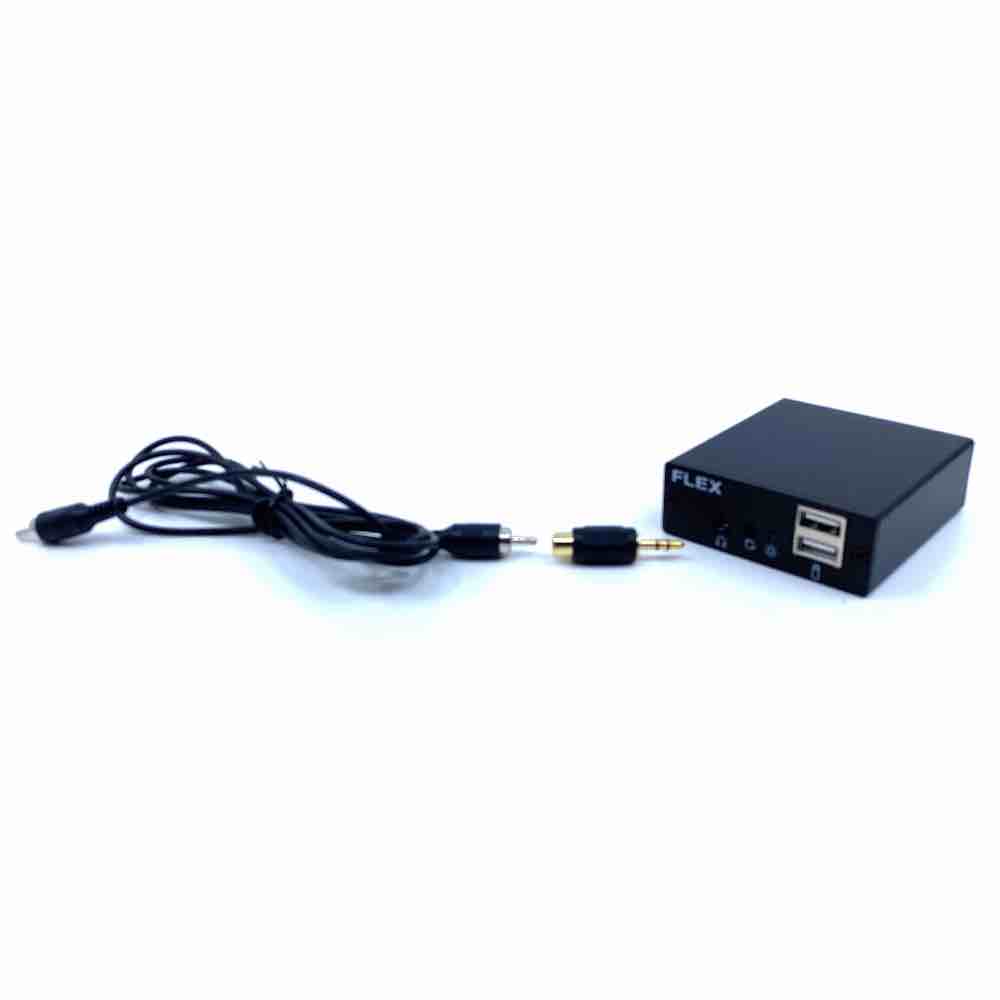

Use a 3.5mm Stereo to F RCA adapter and connect to a single RCA cable. Not supplied with Device.


















For installation into TOA, Bi Amp and Bogen amps please see the following:

Bi Amp use input 1 or 2 , these are stereo summing inputs which electronically convert signal to mono.

Flex audio cable red to red and white to white

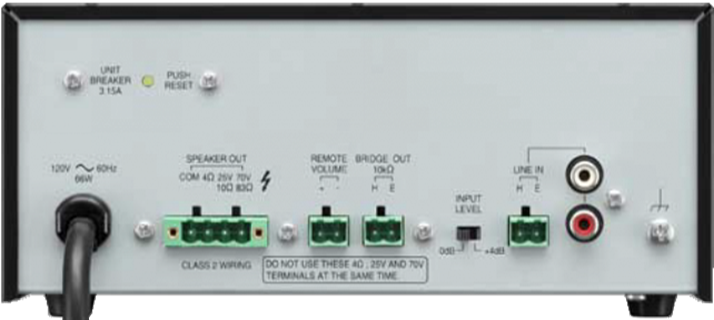

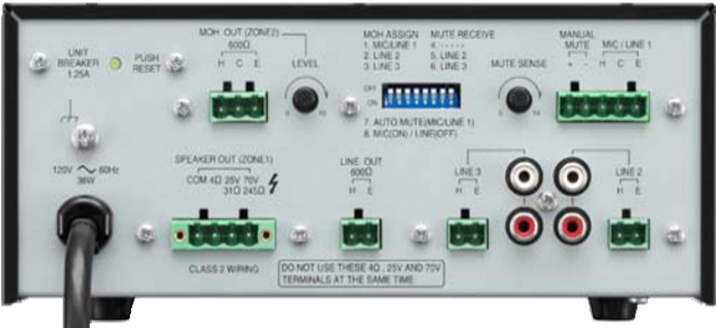

All TOA amps have the same type of connections – Flex audio cable red to red and white to white for the input that you use for Music. Use Line 2 or Line 3 on BG Series
